Specifications

Image Sensor

• Type
  35.9 x 24 mm CMOS
• Effective Pixels
  Approx. 26.2 Megapixels
• Total Pixels
  Approx. 27.1 Megapixels
• Aspect Ratio
  3:2
• Low-Pass Filter
  Built-in/Fixed
• Sensor Cleaning
  EOS integrated cleaning system
• Colour Filter Type
  Primary Colour

Image Processor

• Type
  DIGIC 8

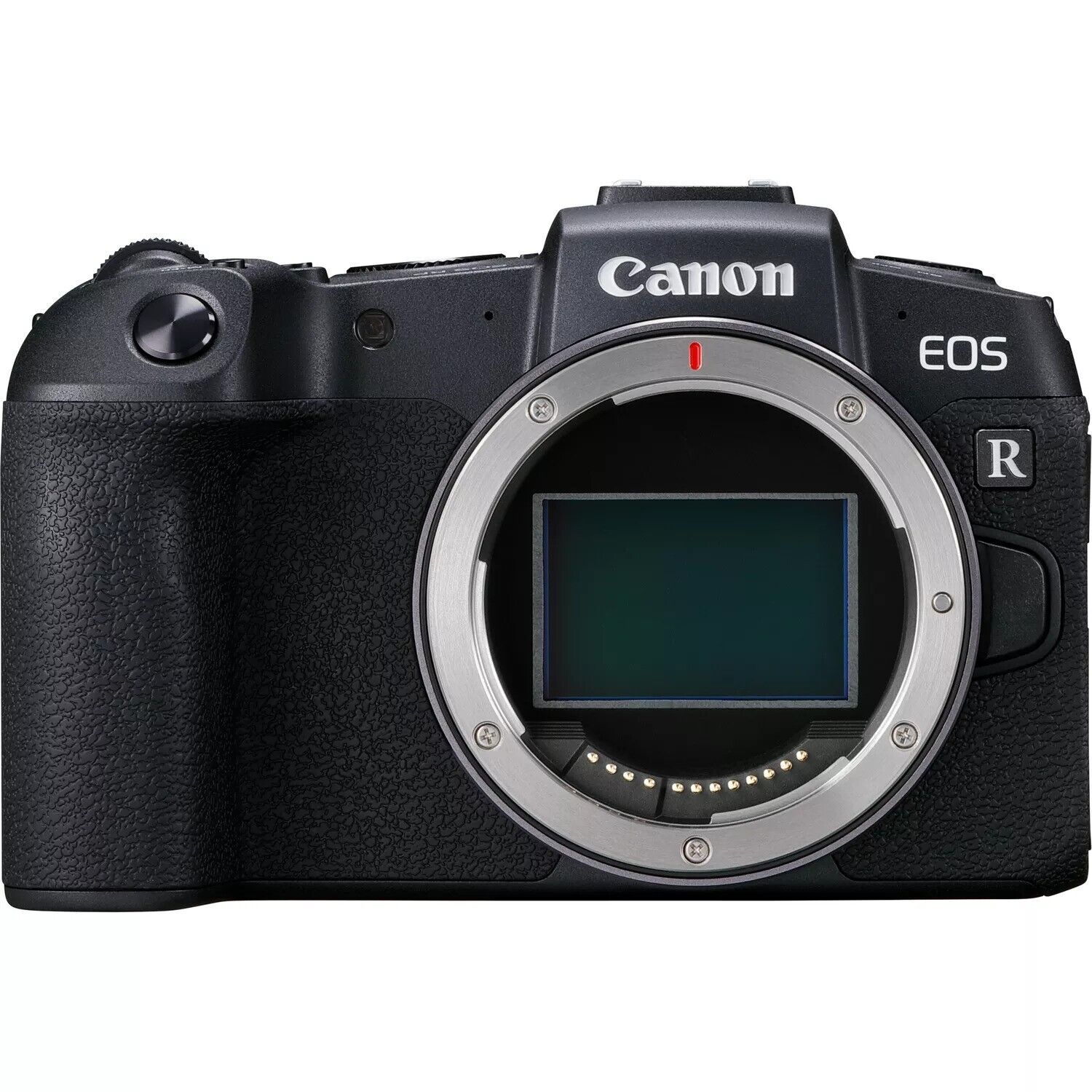

• Lens Mount
  RF (EF and EF-S lenses can be attached using Mount Adapter EF-EOS R, Control Ring Mount Adapter EF-EOS R, or Drop-In Filter Mount Adapter EF-EOS R. EF-M lenses are not compatible)
• Focal length
  Equivalent to 1.0x the focal length of the lens with RF and EF lenses 1.6x with EF-S

• Type
  Phase-difference detection system with image sensor (Dual Pixel CMOS AF)
• Coverage
  88% horizontal and 100% vertical coverage2
• AF working range
  EV -5 to 18 (at 23°C & ISO100)
• AF Modes
  One Shot
  Servo AF
• AF Point Selection
  Automatic selection: Face+tracking + Eye AF
  Manual selection: 1-point AF (AF frame size can be changed)
  4779 AF positions available
  Spot AF
  Manual selection: AF point Expansion 4 points (up, down, left, right)
  Manual selection: AF point Expansion surrounding
  Manual selection: Zone AF (all AF points divided into 9 focusing zones)
• AF Lock
  Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
• AF Assist Beam
  Emitted by built-in LED
• Manual Focus
  Selected on lens
  Focus peaking provided

• Metering modes
  Real-time with image sensor, 384-zone metering (24x16)
  (1) Evaluative metering (linked to all AF points)
  (2) Partial metering (approx. 5.5% of viewfinder at centre)
  (3) Spot metering: Centre spot metering (approx. 2.7% viewfinder at centre)
  AF point-linked spot metering not provided
  (4) centre-weighted average metering
• Metering Brightness Range
  EV -3 to 20 (at 23°C, ISO100, with evaluative metering)
• AE Lock
  Auto: AE lock takes effect when focus is achieved
  Manual: By AE lock button in P, Av, Fv, Tv and M modes
• Exposure Compensation
  +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
• AEB
  +/-3 EV in 1/3 or 1/2 stop increments
• Anti-flicker shooting
  Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease
• ISO Sensitivity
  Auto 100-40000 (in 1/3-stop or whole stop increments)
  ISO can be expanded to L:50, H1: 51200, H2: 102400,
• Type
  Electronically-controlled focal-plane shutter
• Speed
  30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
• Shutter Release
  Soft touch electromagnetic release

• Type
  Auto white balance with the imaging sensor
• Settings
  AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
  White balance compensation:
  1. Blue/Amber +/-9
  2. Magenta/Green +/-9
• Custom White Balance
  Yes, 1 setting can be registered
• WB Bracketing
  +/-3 levels in single level increments
  Selectable Blue/Amber bias or Magenta/Green bias

• Type
  0.39-inch OLED colour EVF
• Dot count
  2.36 Million dots
• Coverage (Vertical/Horizontal)
  Approx. 100%
• Magnification
  Approx. 0.70x 3
• Eyepoint
  Approx. 22 mm (from eyepiece lens centre)
  -4 to +1 m-1 (dioptre)
• Viewfinder Information
  AF point information, Exposure level indicator, Number of remaining multiple exposures, Exposure compensation, HDR shooting, Highlight tone priority, Multiple-exposure shooting, ISO speed, Possible shots, Multi Shot Noise Reduction, Number of self-timer shooting, Digital Lens Optimizer, Maximum burst, AF method, Battery level, AF operation, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still photo cropping, Shooting mode, Aspect ratio, Scene icons Auto Lighting Optimizer, AE lock Picture Style, Flash-ready, White balance, Flash off White balance correction, FE lock, Image Quality, High-speed sync, Bluetooth function, Shutter speed, Wi-Fi function, Multi-function lock warning, Histogram, Aperture Electronic level, Lens information
• Depth of field preview
  Yes, via customised button
• Eyepiece shutter
  N/A

• Type

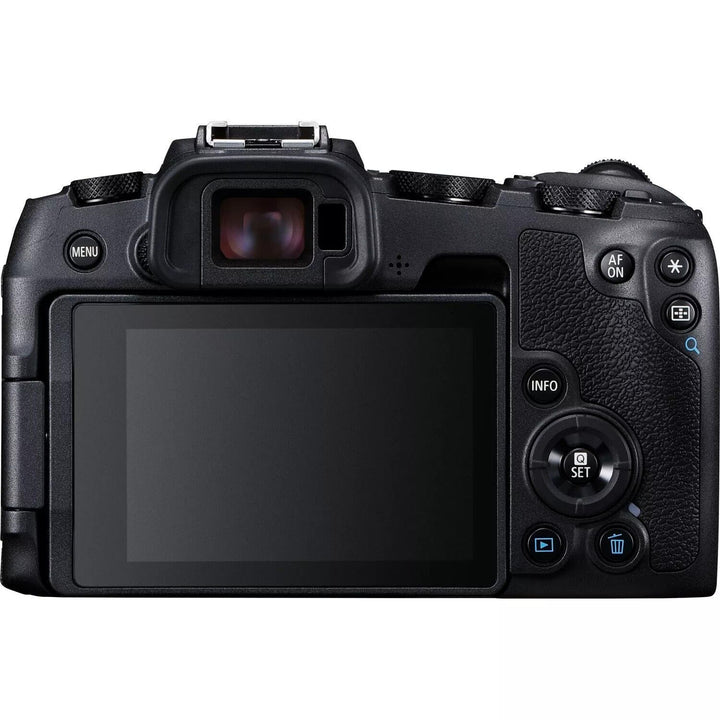

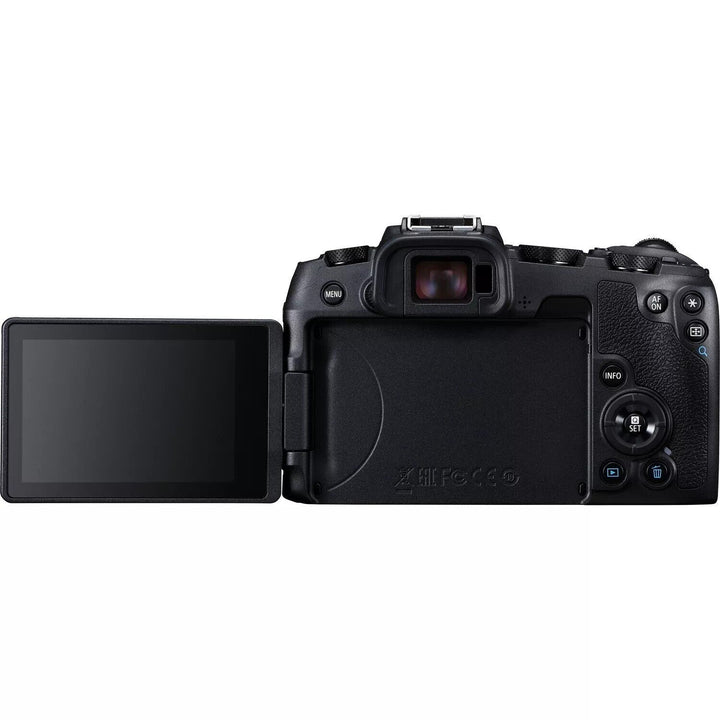

  7.5 cm (3.0") Clear View LCD II, approx. 1.04 Million dots
• Coverage
  Approx. 100%
• Viewing Angle (horizontally/vertically)
  Approx. 170° vertically and horizontally
• Brightness / Colour Adjustment
  Manual: Adjustable to one of seven levels
• Touch-screen operations
  Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in Stills and Movies, touch shutter is possible in still photo shooting.
• Display Options
  (1) Basic Camera settings
  (2) Advanced Camera settings
  (3) Camera settings plus histogram and dual level display
  (4) No info
  (5) Quick Control Screen

Flash

• Modes
  E-TTL II Auto Flash, Metered Manual
• X-sync
  1/180 sec
• Flash Exposure Compensation
  +/- 3 EV in 1/3 or 1/2 increments with EX series Speedlite flashes
• Flash Exposure Bracketing
  Yes, with compatible External Flash
• Flash Exposure Lock
  Yes
• Second Curtain Synchronisation
  Yes via Speedlite
• HotShoe / PC terminal
  Yes/No
• External Flash Compatibility
  E-TTL II with EX series Speedlite, wireless multi-flash support
• External Flash Control
  via camera menu screen

Shooting

• Modes
  Stills: Scene Intelligent Auto, Special Scene (Portrait, Group Photo, Landscape, Sports, Kids, Panning , Close-up, Food, Night Portrait, Handheld Night Scene, HDR Backlight Control, Silent Mode), Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (C1/C2/C3)
  Movie: Auto exposure, Manual, HDR
• Picture Styles
  Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space
  sRGB and Adobe RGB
• Image Processing
  Highlight Tone Priority
  Auto Lighting Optimizer (4 settings)
  Long exposure noise reduction
  High ISO speed noise reduction (4 settings) (stills and video)
  Lens optical correction (3):
  Peripheral illumination correction
  Chromatic aberration correction
  Distortion correction

  Diffraction correction
  Digital Lens Optimizer (during/after still photo shooting)
  Resize to M, S1, S2 4
  Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
  - 43 cropping sizes selectable, from 11% to 95% (diagonal)
  - Switch between vertical and horizontal cropping orientation
  - Image straightening, tilt correction
  - Cropping frame can be moved using touch screen operation
  RAW image processing 5
  Multiple exposure
  HDR
• Drive modes
  Single, Continuous High, Continuous Low, Self timer (2 s + remote, 10 s + remote, continuous)
• Continuous Shooting
  Max. approx. 5 fps speed maintained until card full (JPEG) or 50 RAW images 678
  Max. 4 fps with AF Tracking
• Interval timer
  Yes

Live View Mode

• Type
  Electronic viewfinder with image sensor
• Coverage
  Approx. 100% (horizontally and vertically)
• Frame Rate
  59.97 fps (smooth) / 29.97 fps (power saving)
• Focusing
  Manual Focus (Magnify the image 5x or 10x at any point on screen)
  Autofocus: Dual Pixel CMOS AF (Face Detection and Tracking AF, 1 point AF, Expand AF, Zone AF, and Touch shutter
• Metering
  Real-time evaluative metering with image sensor (384-zone)
  Partial metering (approx. 5.5% of the centre of the screen)
  Spot metering (approx. 2.7% of the centre of the screen)
  Centre-weighted average metering
• Display Options
  3 levels available Basic shooting information, Advanced shooting information and Advanced shooting information with Histogram

File Type - Stills

• Still Image Type
  JPEG
  RAW: RAW, C-RAW (14-bit, Canon original RAW 3rd edition)
  Complies with Exif 2.31 and Design rule for Camera File system 2.0
  Complies with Digital Print Order Format [DPOF] Version 1.1
• RAW+JPEG simultaneous recording
  Yes, any combination of RAW + JPEG possible
• Image Size
  JPEG:
  3:2 ratio (L, RAW, C-RAW) 6240x4160, (M1) 4160x2768, (S1) 3120x2080, (S2) 2400x1600
  1.6x (crop) (L) 3888x2592, (S2) 2400x1600
  4:3 ratio (L) 5536x4160, (M1) 3680x2768, (S1) 2768x2080, (S2) 2112x1600
  16:9 ratio (L) 6240x3504, (M1) 4160x2336, (S1) 3120x1752, (S2) 2400x1344
  1:1 ratio (L) 4160x4160, (M1) 2768x2768, (S1) 2080x2080, (S2) 1600x1600
• Folders
  New folders can be manually created and selected
• File Numbering
  (1) Consecutive numbering
  (2) Auto reset
  (3) Manual reset

• Movie Type
  RF/EF lenses: 4K, Full HD, HD.
  EF-S lenses: 4K or HD
  MPEG4 AVC/H.264 variable (average) bit rate, Audio: AAC
• Movie Size
  4K (16:9) 3840 x 2160 (25, 23.98 fps) intra frame 9
  4K Time-lapse (16:9) 3840 x 2160 (29.97, 25 fps) All-I
  Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25 fps) intra frame, intra frame lite (29.97, 25 fps)
  Full HD HDR (16:9) 1920 x 1080 (29.97, 25 fps) intra frame
  HD (16:9) 1280 x 720 (59.94, 29.97, 50, 25 fps) intra frame
  HD HDR(16:9) 1280 x 720 (29.97, 25 fps) intra frame
• Colour Sampling (Internal recording)
  4K / Full HD / HD - YCbCr4:2:0 (8-bit)
• Canon Log
  No
• Movie Length
  4K and Full HD - Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT SDXC card.
• High Frame Rate Movie
  Not supported
• 4K Frame Grab
  8.3-megapixel JPEG still image frame grab from 4K movie possible
• Bitrate / Mbps
  MP4:
  4K (16:9) 3840 x 2160 (25, 23.98 fps) IPB 120Mbps / 869 MB/min
  Full HD (59.94p/50.00p)/IPB Approx. 60 Mbps / 440MB/min
  Full HD (29.97p/25.00p)/IPB: Approx. 30 Mbps / 225MB/min
  Full HD (29.97p/25.00p)/IPB Lite: Approx. 12 Mbps / 87MB/min
  HD (59.94p/50.00p)/IPB Approx. 26 Mbps / 196MB/min
  Full HD (29.97p/25.00p)/IPB: Approx. 13 Mbps / 103MB/min
• Microphone
  Built-in stereo microphones (48 kHz, 16-bit x 2 channels)
• HDMI Display
  Output to external Monitor only with or without information display
• HDMI Output
  4K (UHD) and Full HD or HD recording, uncompressed YCbCr 4:2:2, 8-bit. Sound output via HDMI is also possible.
  When outputting to external monitor no images are recorded to the card and Wi-Fi communication is disabled
• Focusing
  Dual Pixel CMOS AF with Face Detection and Tracking AF, Movie Servo AF, Continuous Eye AF, Manual Focus with focus peaking
• ISO
  4K - Auto: 100-12800, H2: 102400
  Full HD/HD - Auto: 100-25600, H2:102400

• Custom Functions
  23 Custom Functions
• Metadata Tag
  User copyright information (can be set in camera)
  Image rating (0-5 stars)
• Water / Dust resistance
  Yes
• Voice Memo
  No
• Intelligent Orientation Sensor
  Yes
• Playback zoom
  1.5x - 10x in 15 steps
• Display Formats
  (1) Single image
  (2) Single image with information (2 levels)
  Basic - Shooting information (shutter speed, aperture, ISO and Image quality)
  Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, Record of sent images, GPS information
  (3) 4-image index
  (4) 9-image index
  (5) 36-image index
  (6) 100-image index
  (7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating)
  (8) Movie edit
  (9) RAW processing
  (10) Rating
• Slide Show
  Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
  Playback time: 1/2/3/5/10 or 20 seconds
  Repeat: On/Off
• Histogram
  Brightness: Yes
  RGB: Yes
• Highlight Alert
  Yes
• Image Erase
  Single image, select range, Selected images, Folder, Card
• Image Erase Protection
  Erase protection of Single image, Folder or Card all found images (only during image search)
• Self Timer
  2 or 10 sec. continuous
• Menu Categories
  (1) Shooting menu
  (2) Playback menu
  (3) Setup menu
  (4) Custom Functions menu
  (5) My Menu
• Menu Languages
  29 Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
• Firmware Update
  Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter)
• Body Materials
  Magnesium alloy, with some parts of aluminium and polycarbonate resin with glass fibre

Interface

• Computer
  Equivalent to Hi-Speed USB (USB 2.0) Type-C connector
• Wi-Fi
  Wireless LAN (IEEE 802.11b/g/n) (2.4 GHz only), with Bluetooth support 10 Features supported: EOS Utility, Smartphone, Upload to Web, Auto transfer, Wireless printing
• Other

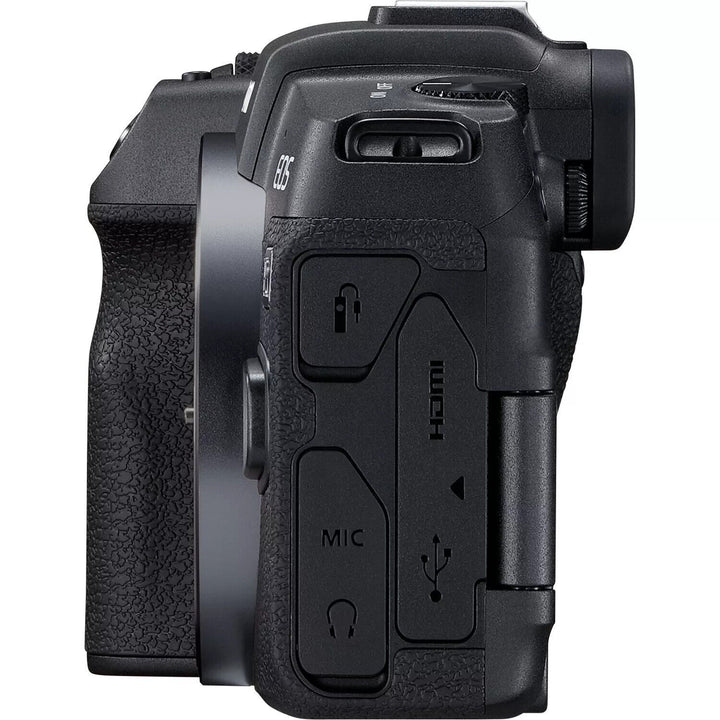

  HDMI mini out (Type C, HDMI-CEC compatible), External Microphone In/Line In (Stereo mini jack), Headphone socket (Stereo mini jack), E3-type terminal (remote control terminal)

Direct Print

• PictBridge
  Yes (Via Wireless LAN only)

• Type
  1x SD/SDHC/SDXC and UHS-II

• PC & Macintosh
  Windows 7 (excl. Starter Edition) Windows 8.1 and Windows 10 (tablet mode not supported)
  OS X v10.11, 10.12, 10.13 and 10.14

Software

• Image Processing
  Digital Photo Professional 4.9 or later (RAW Image Processing)
• Other
  EOS Utility 3.9 or later (incl. Remote Capture), Picture Style Editor, Map Utility, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app (iOS/Android)

Power Source

• Batteries
  Rechargeable Li-ion Battery LP-E17 (supplied)
• Battery life
  Approx. 250 shots (at 23°C) 11
  Approx. 240 shots (at 0°C)
• Battery Indicator
  4 levels + percentage
• Power saving
  Power turns off after 30 seconds, 1, 3, 5, 10 or 30 mins
• Power Supply & Battery Chargers
  Battery charger LC-E17E (supplied), AC adapter AC-E6N and DC coupler DR-E18, AC adapter kit ACK-E18, USB Power Adapter PD-E1
